Discover the Application

Following this article, get to know Cintoo VR Experience application, log into Cintoo account and tenant, choose settings for controls and quality parameters.

TABLE OF CONTENTS

Installation
Targeted Tenant
Visual Quality
Scans Quality
Controllers Configuration
Control Tips

Installation

Install application called Cintoo VR Experience, following standard installation procedure. Launch application by double clicking CintooVRExperience.exe.

Note: it is possible that Windows protected you PC dialogue appears, click More info and click Run anyway.

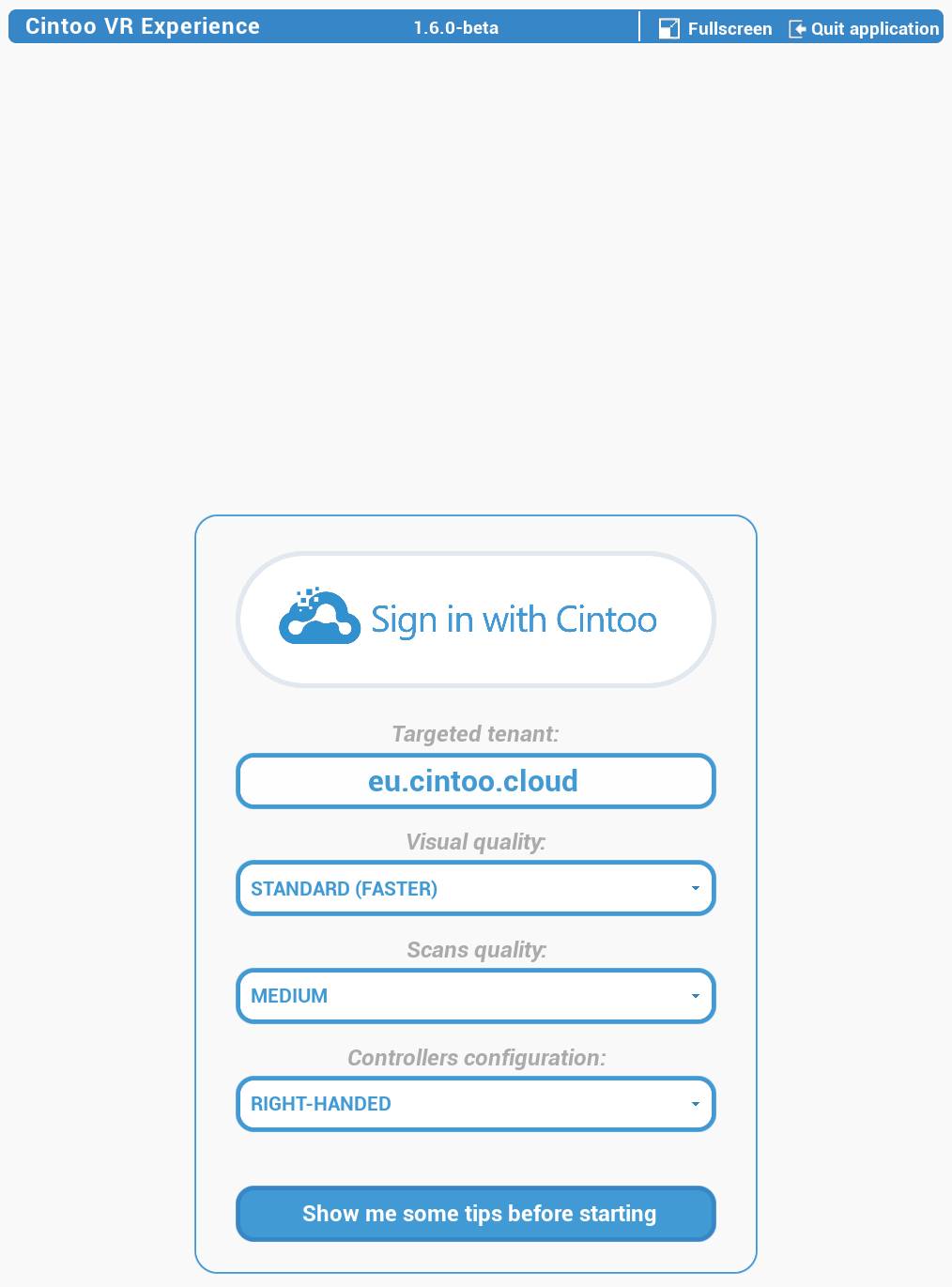

Starting menu with options to sign in with a Cintoo account, choose a Targeted tenant, choose Visual quality, and set up Controllers configuration will be displayed.

Targeted Tenant

Define Targeted tenant. Tenant value is saved for future logins and could be changed at any time.

For EU tenant, type aec.cintoo.com or eu.cintoo.cloud
For US tenant, type us.cintoo.cloud
For custom tenant, type [company name].cintoo.cloud

Note: if not sure which tenant to choose - go to Cintoo in browser and check the link.

Visual Quality

Set Visual quality that best fits the needs according to a description below.

Standard - default anti-aliasing method with no optimization, allowing crisp close-up at the expense of a poor image stabilization
Stabilized - gives a better anti-aliased and stabilized image quality; picture more blurred than Standard
Best - crisper than Stabilized and offers the best anti-aliased stabilization
AI Image Enhancement - for Nvidia RTX graphic cards only. Offers best-in-class image quality with very few impacts on performances.
AI Progressive Performances - for Nvidia RTX graphic cards only. Offers an adaptative and progressive trade-off between image quality and performance depending on workstation performances and on scans.

Scans Quality

Affects data quality directly.

Low - minimum quality for fast data visualization without much details. Adapted to low-end workstation or low-speed network.
Medium - all-around quality with more details, best fit for working with large scenes. Adapted to mid-range workstation.
High - allows to perform detailed actions and review with scan data. Requires a good workstation and high-speed network.
Best - extreme details for most precision demanding tasks. Requires a very good workstation and high-speed network.

Controllers Configuration

Right-handed

Left-handed

Control Tips

Review controls by clicking Show me some tips before starting.

Navigation Controller & Tools Controller

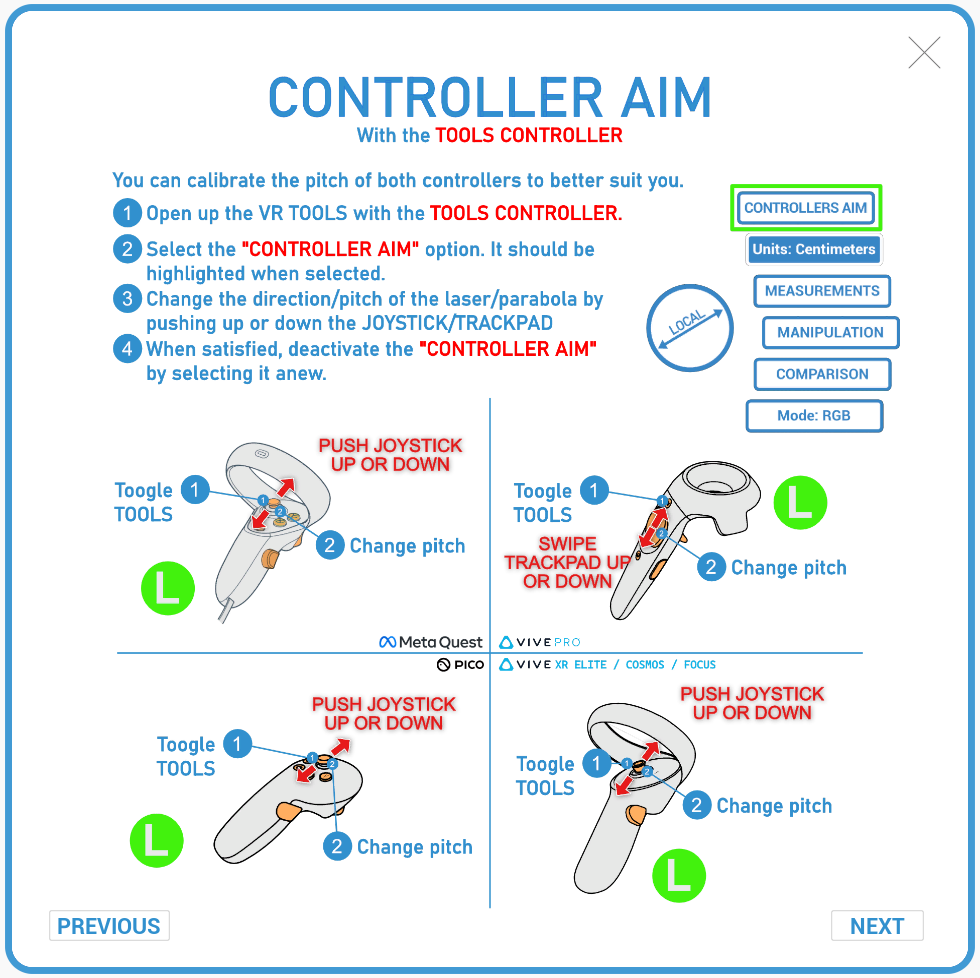

Controller Aim
Basic Controls
Navigation Controls
How To Teleport?
Virtual Floor Controls
Quick Turns
Activate Tools & Cycle Display Modes
Teleport Helpers

Button Sign in with Cintoo allows to connect to a Cintoo account.
- Click Sign in with Cintoo. A page will open in browser to sign in to Cintoo account.
  Enter Cintoo login credentials to sign in.  
- In Authorize application dialogue, click Allow.
  If authorization is not allowed after one minute, Login failed message will be displayed.
  Hover mouse cursor over Login failed message, and click Retry Log in.
- Once successfully connected, Projects panel will display a list of projects in the account.
To quit Cintoo VR Experience press Quit application at the top of the screen.
